Drum Evaporators

Efficiently Dewater Small Volume Waste Streams

hero-disposal
Dramatically Reduce Disposal Volume & Cost by 99% or More!
hero-safe
Safe to Operate 24/7
hero-install
Easy to Install. Simple to Operate & Maintain
hero-flag-1
Designed & Manufactured in the USA
24
Gallons Per Hour

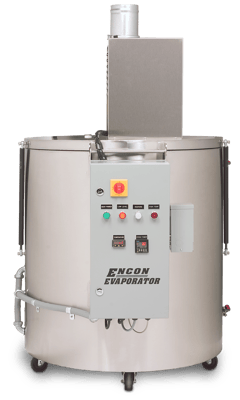

Drum-Full-hero

Evaporation is a time-tested & cost-effective method for reducing the volume of water-based waste

dollarsign-icon

Hauling is Costly

Industrial and commercial facilities that generate wastewater spend too much money paying for hauling & disposal of waste streams that are mostly comprised of water.

water-icon

Evaporation is Cost Effective

ENCON Evaporators are utilized by 2,000+ facilities worldwide to evaporate the water portion of water-based wastes, reducing hauling/disposal volumes and cost by up to or even exceeding 99%.

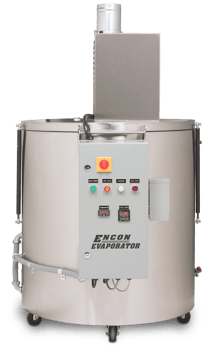

Drum-Full-hero
large-checkbox

Advantages of ENCON Drum Evaporators

  • Concentrate, Dry & Dispose of residue in one drum
  • Can handle different waste streams simultaneously
  • Can handle very challenging and complex waste streams
  • Dramatically reduces disposal volume & cost
  • Eliminates sewer discharge accountability
  • Achieve ZLD
  • Easy to Operate
  • Great for waste streams too concentrated for traditional evaporators
  • Requires less operator intervention than most wastewater treatment technologies

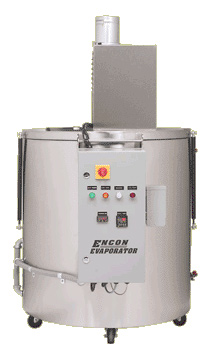

What is a Drum Evaporator?

ENCON Drum Evaporators are electrically heated small volume evaporators that are easy to use and economical to operate. The DE-2 is a batch evaporator (auto-fill option is also available) that can process 200 gallons per 5-day week. The DE-4 is an auto-fill evaporator that can process 400 gallons per 5-day week.

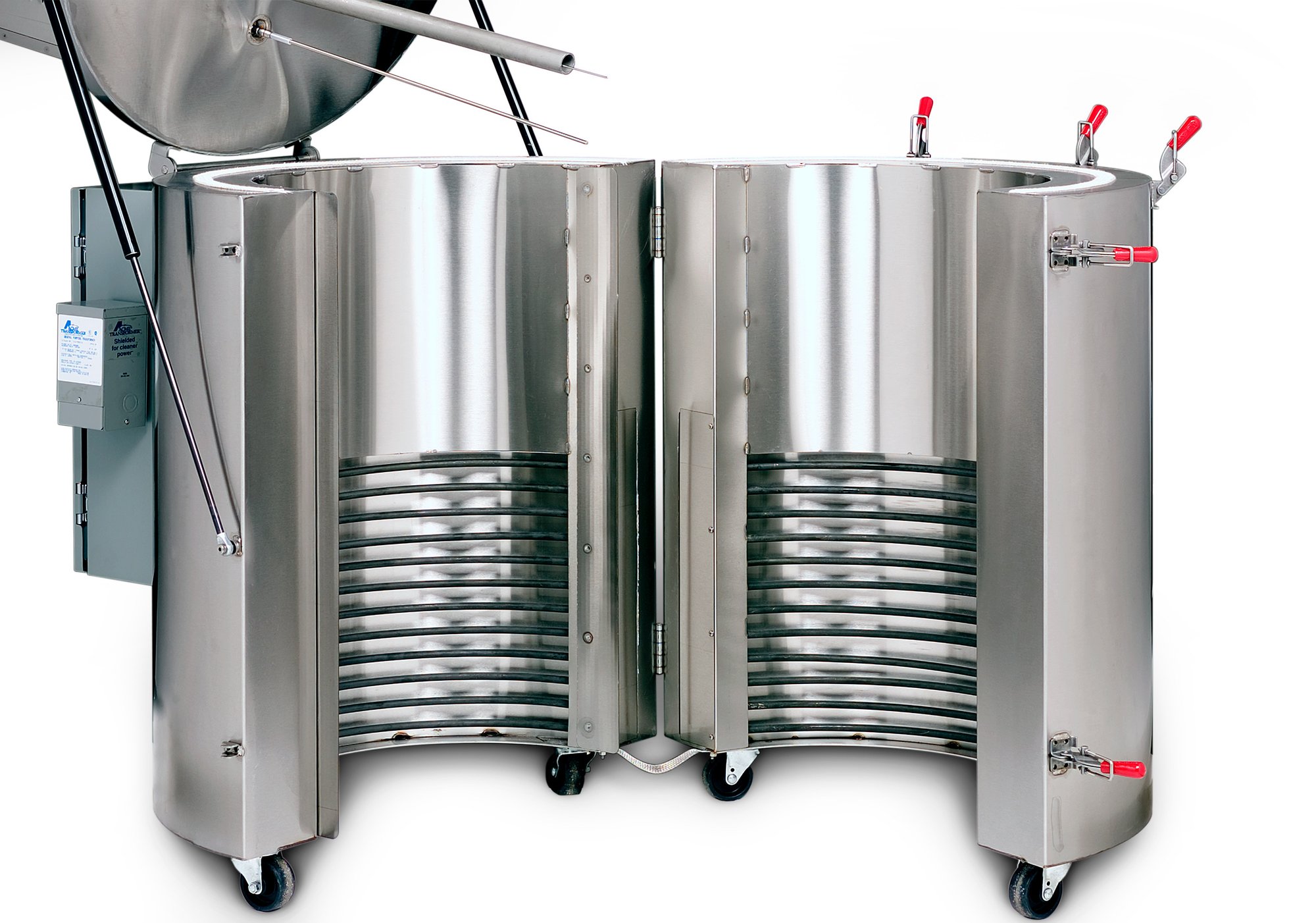

drum open empty

How Does it Work?

Both models completely encapsulate a 55gallon drum of wastewater and heat from the outside, thereby eliminating contact of the heating elements with the wastewater. This makes the ENCON Drum Evaporator appropriate for not only standard wastewater streams that can be handled in other types of evaporators, but also for de-watering waste streams with high solid loading, such as water-based inks, paints, adhesives, and concentrated residue from other ENCON Evaporators.

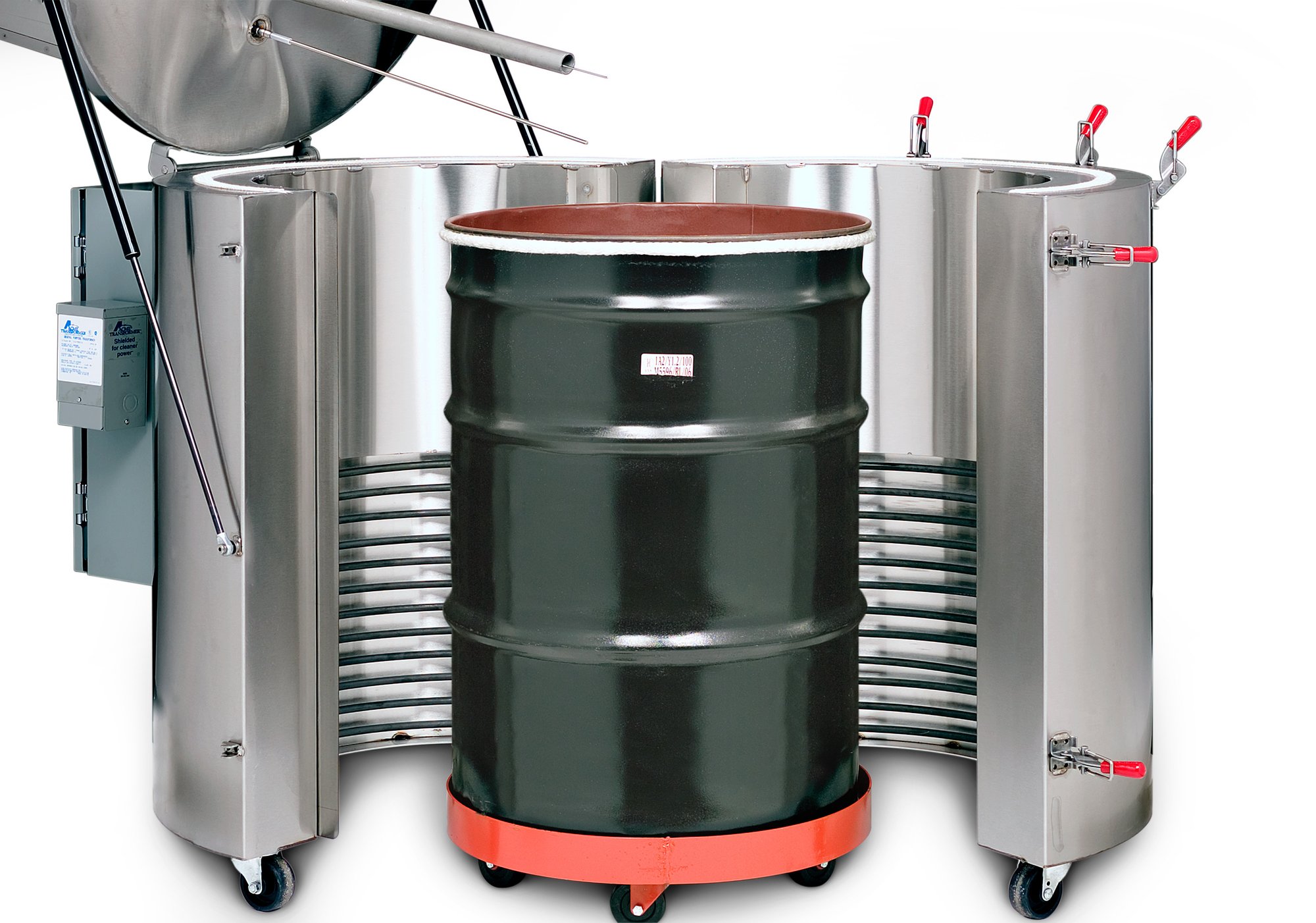

Drum open with barrel

Features

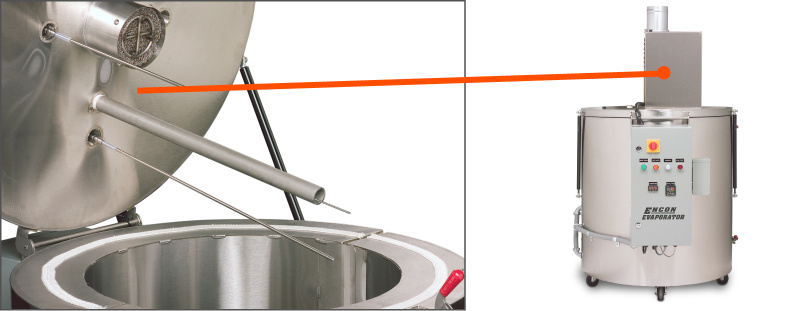

drum evaporator - feature 1

Hinged Lids and Side Walls for Easy Access

The hinged lids and side walls make it easy to roll drums in and out using the included drum dolly.

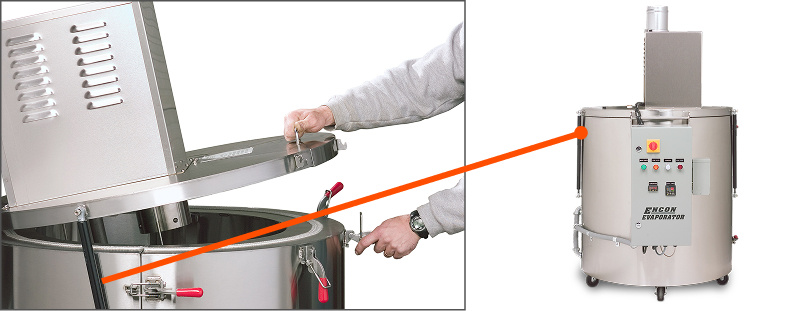

drum evaporator - feature 2

Simple to operate

User-friendly control panel monitors liquid temperature, level, and cycle time, with separate controls for temperature and timer, power selector switch, and status/warning indicators. Auto-fill option to provide unattended operation.

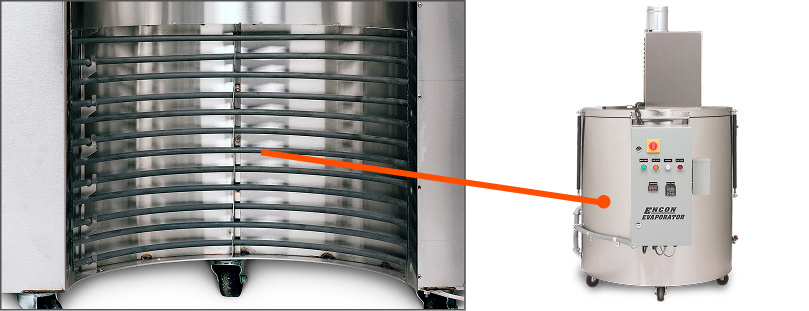

drum evaporator - feature 3

Superior Fabrication

Polished 304 stainless steel exterior offers superior corrosion resistance over painted surfaces. A compression-fit 316 stainless steel mesh mist eliminator captures fine droplets within a durable stainless housing.

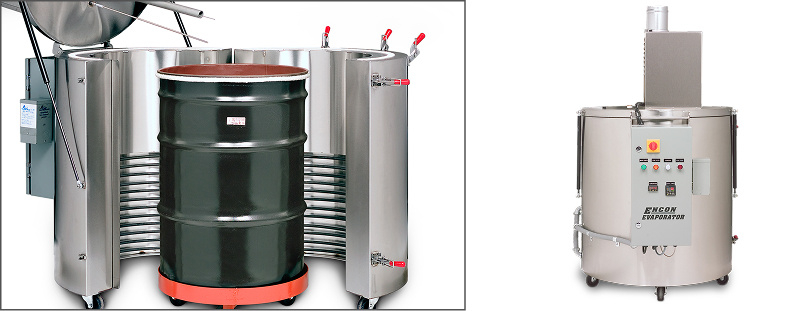

drum evaporator - feature 4

Concentrate & dispose of residue in one drum

Using a 55-gallon steel drum as the process vessel minimizes both handling and time consuming cleaning.

Process Description

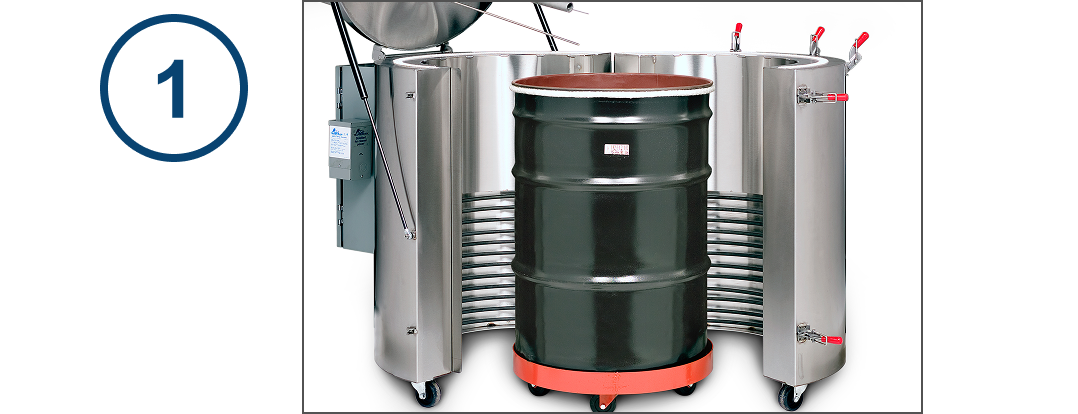

drum evaporator - step 1

Step 1

Place a 55-gallon open top drum onto the drum dolly. Transfer wastewater into the drum to within 6- 8 inches of the top. With the evaporator in full open position, roll the drum into the evaporator. Wrap the rope gasket around the drum so that a positive seal will be made when the clamshell walls are closed and secured.

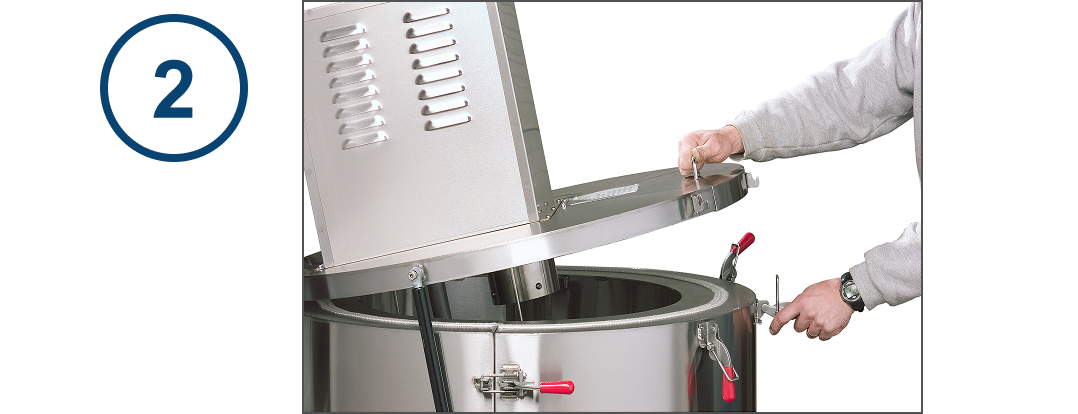

drum evaporator - step 2

Step 2

Close and secure the clamshell walls and lid with the latching handles.

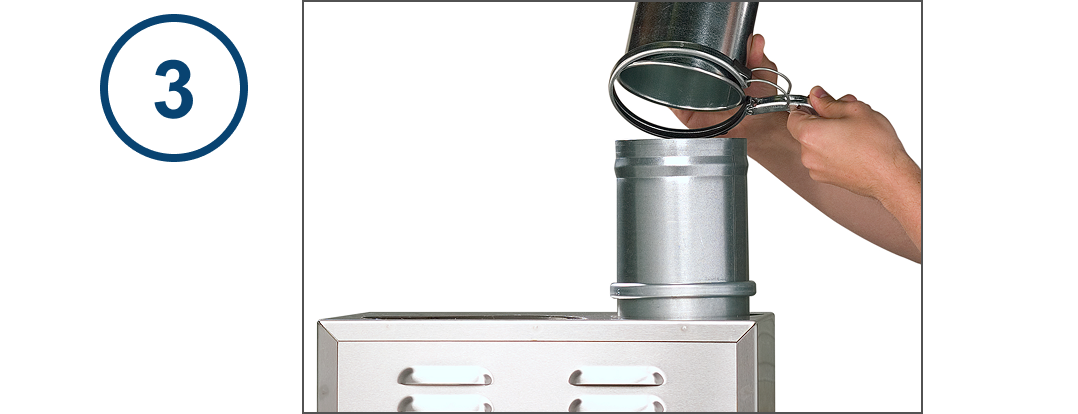

drum evaporator - step 3

Step 3

The evaporator stack is then connected to the flexible section of the permanent exhaust stack with a quick disconnect fitting.

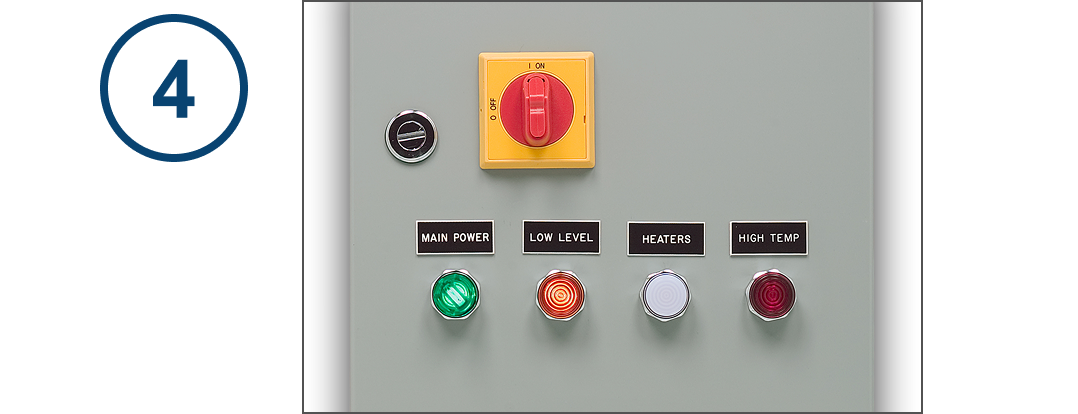

drum evaporator - step 4

Step 4

Turn the red power switch to the “ON” position. Allow the system to heat up to boiling temperature. The system will shutdown upon reaching the low level or high temperature setpoint.

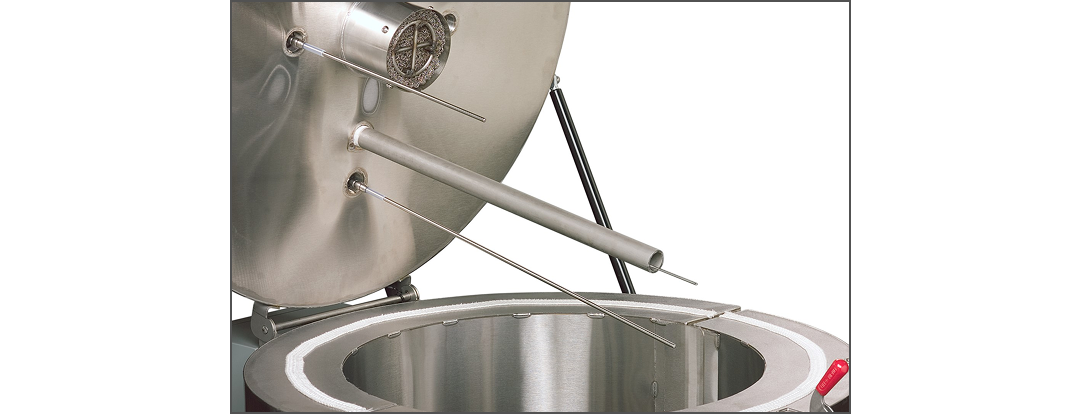

drum evaporator - autofill

Auto Fill Operation

(DE-4, DE-2 with Auto Fill Option)

The ENCON DE-2 Drum Evaporator can be modified to run in the auto-fill mode (optional high-level probe required). The ENCON DE-4 only operates in auto-fill mode. This mode requires plumbing from a feed pump to the inlet on the top of the evaporator lid. This allows the automatic and continuous refilling of the evaporator between the height of the two level probes until either the high temperature set point is reached or there is no longer water to be processed in the feed tank.

Full Range of Upgrades, Accessories and Services to Unlock Your Evaporator’s Full Potential

encon-Drum-Condenser

ENCON offers a full range of upgrades, accessories and services to minimize labor and maximize return on investment.

Recover your wastewater as clean condensate with our condenser package!

Work with our consultative Sales Engineers to spec a turn-key system.

Utilize our air permitting / permit-exemption services.

Contact the ENCON Service team for the full lineup of upgrades and accessories

Free Application Feasibility Report

The centerpiece of our consultative approach is our complimentary bench scale analysis of your waste or process stream. This free analysis determines:

  • How appropriate the stream is for evaporation
  • Estimated reduction percentage
  • Recommended materials of construction
  • Recommended operating procedures.
Contact Us Today
feasability-report-1

Capacities & Dimensions

Model DE-2 Model DE-4
Electric Requirements - V/PH/Hz (FLA) 480V/3Ph/9.7
240V/3Ph/19.5
480V/3Ph/19
240V/3Ph/38
Available Non-Standard Voltages 208V/3Ph, 220V/1PH, 575V/3PH, 380V/3PH, 400V/3PH, more 208V/3Ph, 220V/1PH, 575V/3PH, 380V/3PH, 400V/3PH, more
Evaporation Rate 200 gallons per 5-day week* 400 gallons per 5-day week*
Heater Description (Qty 6) 1.2kw low watt density elements (Qty 12) 1.2kw low watt density elements
Evaporator Dimensions 42” diameter x 64” high (at exhaust stack outlet) 42” diameter x 64” high (at exhaust stack outlet)
Evaporator Weight (Empty) 412lbs 412lbs
Exhaust Stack 5” diameter insulated exhaust
Volumetric Airflow 120 CFM at 70°F and 0.2 inches of water column
55 Gallon Drum Requirement Open top, steel with 21–23” diameter x 34–36” high (supplied by Customer)
*Evaporation rate is based on tap water and auto-fill operation. Actual rate may vary based on waste stream
Materials of Construction Skins & Lids: Polished 304 Stainless Steel, 18 ga.
Mist Eliminator Pad: 316L Stainless Steel.
Insulation: 4” Insulation in Walls, 2” Insulation in Lids.
Controls Inputs 316 Stainless Steel Low Level Shut-Off, 316 Stainless Steel High Level Shut-Off (With Auto-Fill Option: DE-4: Standard, DE-2: optional), Hastelloy C Type J Thermocouple, Cycle Timer
Control Panel NEMA 12 & 13 Relay Control Panel, Digital Temperature Display, Cycle Time Digital Display, Selector Switch (1) – Main Power, Warning Lights (2) – High Temperature & Low Level, Indicators (2) – Main Power & Heaters
Quality I/O Simulation: All I/O and Controls are Fully Tested to Ensure Accuracy/Functionality.
Warranty: One Year for Parts and Workmanship Issues.
