Evaporator Specifications when using 55 Gallon Drums

Evaporator Specifications When Using 55 Gallon Drums

Capacities & Dimensions

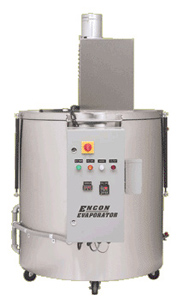

The ENCON Drum Evaporators are designed to hold a 55 gallon drum and perform the following features:

  • Selector Switch Disconnect on Panel Door
  • Digital High Temperature Shut-off
  • 316 Stainless Steel Low Level Shut-off
  • 316 Stainless High Level Shut-off (DE-4 and DE-2 w/ Auto Fill option)
  • Hastelloy C type J thermocouple
  • Cycle Timer Shut-off (Optional)
  • 316L Stainless Mist Eliminator
  • 4" Ceramic Fiber Insulation in Walls
  • 2" Ceramic Fiber Insulation in Lids
  • Drum Dolly with Industrial Grade Casters
  • Flexible Stack Connector with Quick Disconnect for 5 inch stack

Dimensions and Specifications Models
  DE2 DE4
ENCON Dimensions 42in.(D)x 64 in.(H) 42in.(D)x 64 in.(H)
Drum Dimensions (Supplied by Customer) 21-23in. (D) x 36in (H) max 21-23in. (D) x 36in (H) max
Evaporation Rate 200 gallons per 5 day week* 400 gallons per 5 day week*
Stack Dimensions 5 inch 5 inch
Volumetric Airflow 120CFM at 70F and 0.2 inches of water column 120CFM at 70F and 0.2 inches of water column
Power Supply Requirements (Full Load Amps) 480V/3Ph/9.7 480V/3Ph/19
  240V/3Ph/19.5 240V/3Ph/38
  208V/3Ph/15.1** 208V/3Ph/29**
  220V/1Ph/34.3

*Evaporation Rate is based on tap water and auto-fill operation. Actual rate may vary based on waste stream.

**Evaporation Rate is reduced when run on 208V/3Ph power
